120leds/m Side View 335 LED Strip
Basic Info
Brand: MingXue
Input Voltage:: DC12V/24V
Brand Name :: Mingxue
CCT:: 3000K-6500K
Warranty :: 3 Years
Light Source :: SMD 335
Working Lifetime :: 30000 H
Color Temperature (CCT): >80
Working Temperature:: -20°-40°
Lamp Power :: 720 Lm
Additional Info
Productivity: 100000 meters
Transportation: Ocean,Land,Air
Place of Origin: Shenzhen China
Supply Ability: Stable
Certificate: CE UL ROHS
Port: Shenzheng Port,HK Port,Shenzhen Yantian
Payment Type: L/C,T/T,D/P
Incoterm: FOB
Product Description

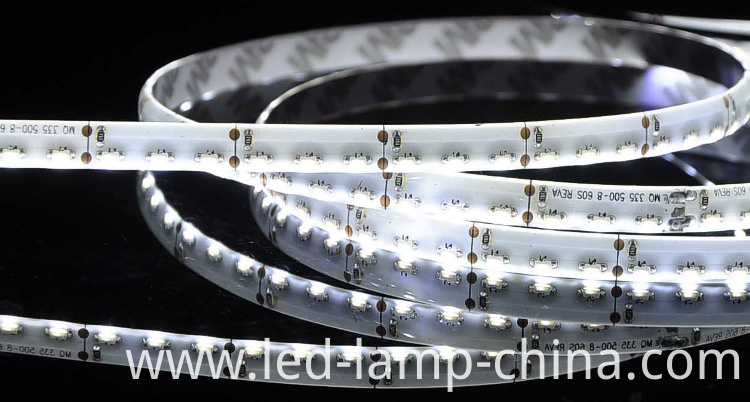

Special 335 LED Side Emitting LED Strip,60leds/m 120leds/m Side Emitting LED Strip Light,Ra>80 Size View LED Strip.Use constant voltage DC12V,Correctly connect the positive and negative pole. Cutting beyond the unit is not workable. Use controller to adjust the brightness .
FEATURES:
1.Width: 6mm, 5m/reel;
2.Viewing angle : 120 degrees;
3.Cuttable at 3 leds
4.Color available:single color RGB;
5.5 meter packing
6.Long life: 50,000 hours;
7.Board material: FPC;`
8.Input: DC 12V , 4.8watts per meter;
Specifications:
Light Color White: white,warm white
LED Quantity :335, 60pcs/m 120led/m
Input Voltage : 12V DC
Operating Current : 0.4A
Input Power : 4.8 W
Water Proof :IP20/IP65/IP66
Lumens :550LM/5 meter
Size: 22.5*22.5*30
View Angle: 120° Gross weight
Illumination range 0.5-1.5 m
Storage Temperature -40°C----+80°C
Operating emperature -25°C----+60°C
Install:
IP grade:
Warning:
1.Supply voltage of this product is DC12; never connect to other high voltage.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram offers.
4.Warranty of this product is 2 years, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged or overload working.

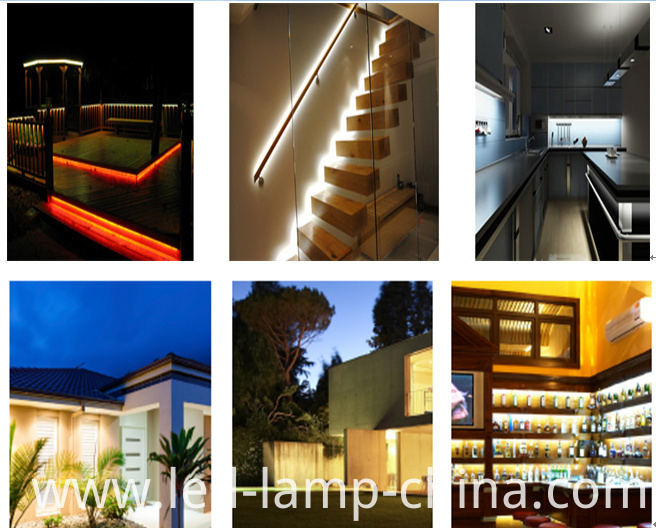

Application:
Delivery:
Product Categories : LED Strip Light > SMD335 Led Strip Light
